Why the A-10 Warthog's Nose Gear Is Offset to the Right

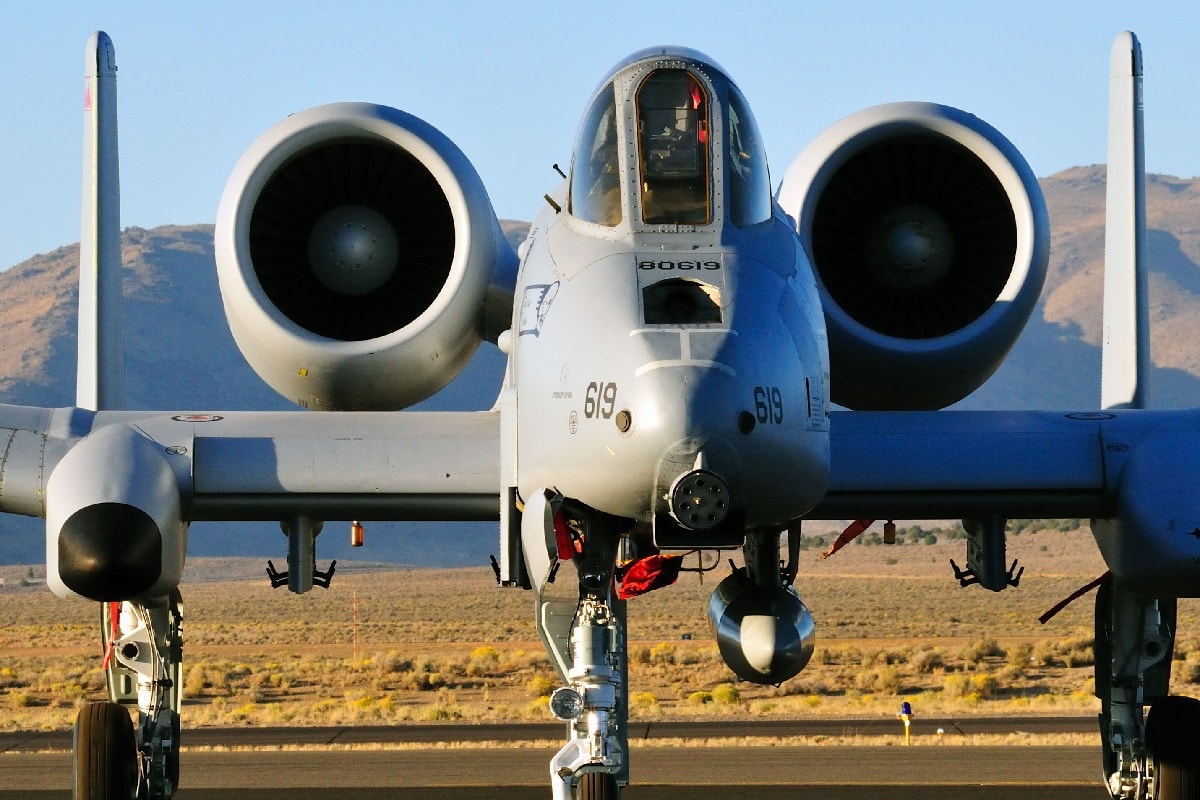

Walk up to an A-10 Thunderbolt II from the front and something looks slightly wrong. The nose wheel is not on the centerline. It sits a little to the right, a small asymmetry that would count as a design flaw on almost any other aircraft. On the Warthog it is entirely deliberate, and the explanation starts with the cannon the whole airplane was built around.

An Aircraft Built Around a Gun

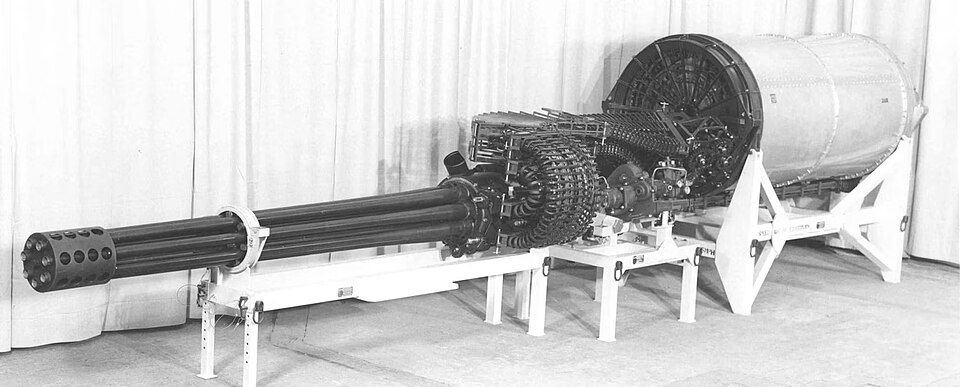

The A-10 was not designed with a gun added later. Its GAU-8 Avenger cannon was developed in tandem with the airframe in the early 1970s, and the aircraft grew around it. The 30mm, seven-barrel rotary cannon can fire up to 3,900 rounds per minute. The complete system accounts for as much as 16% of the Warthog's unloaded weight, and it sits so heavily in the aircraft's balance that the airframe would tip over without it.

With a weapon that large and that central, almost every other layout decision has to bend around it. The nose landing gear is one of them.

Why the Gun Is Not on the Centerline

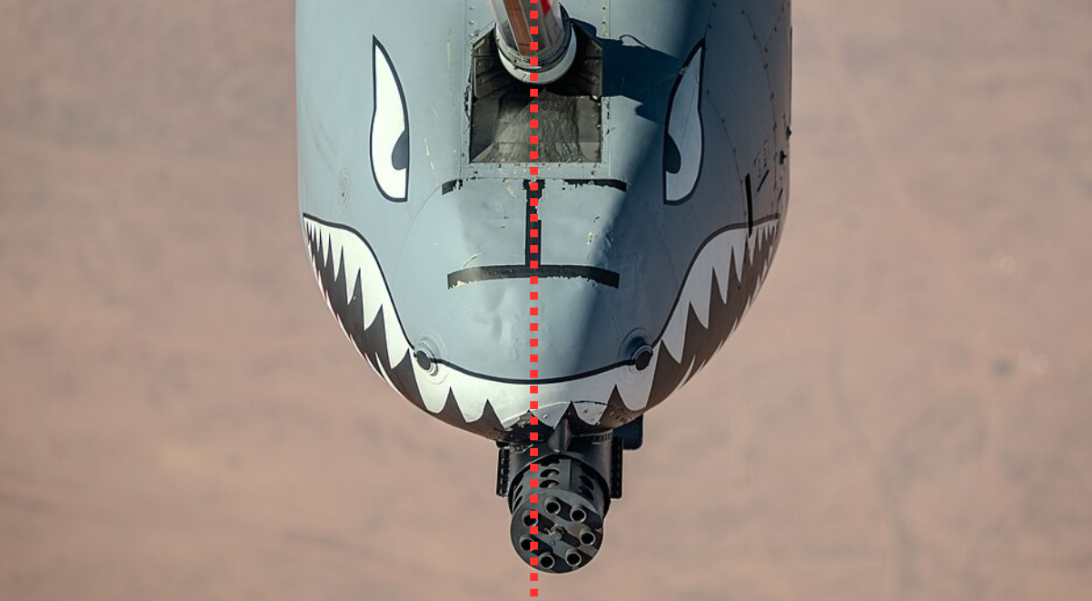

Seven barrels rotate as the cannon fires, but only one barrel is actually firing at any given moment. From the pilot's point of view, that barrel sits at the 3 o'clock position, not at the top or bottom of the assembly. To bring the active barrel onto the aircraft's centerline, the gun is mounted slightly to the pilot's left. The recoil then travels straight down the aircraft's axis instead of pulling to one side.

The force involved explains why this matters. Even a few inches of offset would create a yaw moment strong enough to drag the nose off target during a short burst. Instead of a tight cluster of impacts, the rounds would spread into a horizontal line across the target area.

Where the Nose Gear Fits In

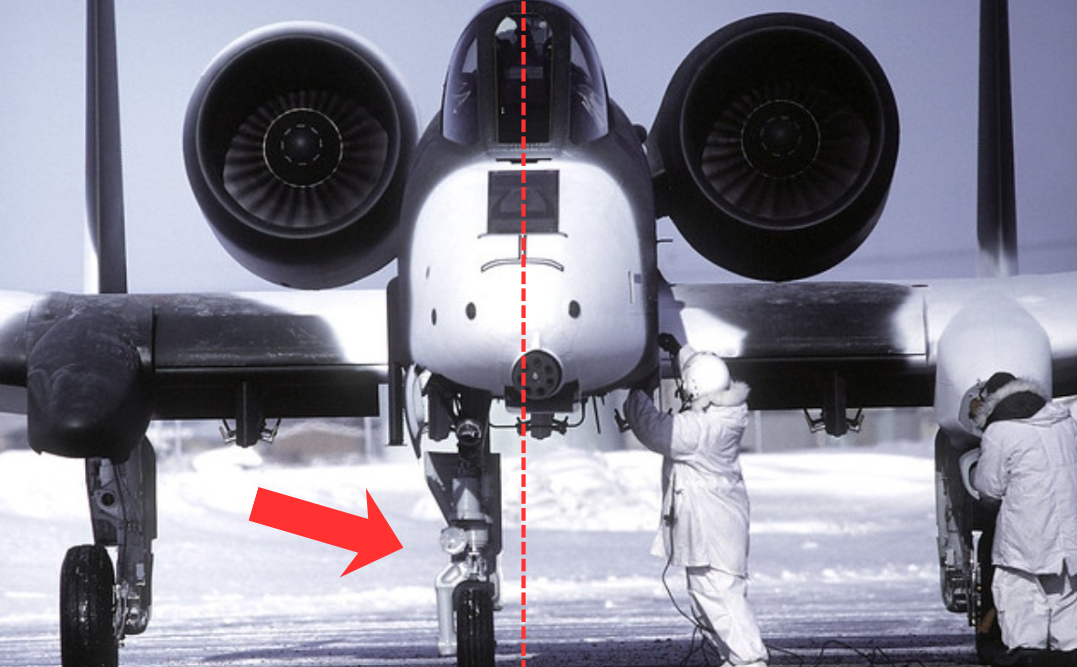

Once the cannon takes up the middle of the nose, the nose landing gear needs somewhere else to go. The gun is in the way, so the wheel and its bay are moved off center. The gun sits slightly to the left, which leaves the nose wheel the space on the right. That is the slightly lopsided look visible from the front.

It helps to read the offset as a consequence rather than a quirk. The landing gear is not placed to the right for its own sake. It simply gives way so that the firing barrel can sit exactly where it needs to.

The Pitch Problem

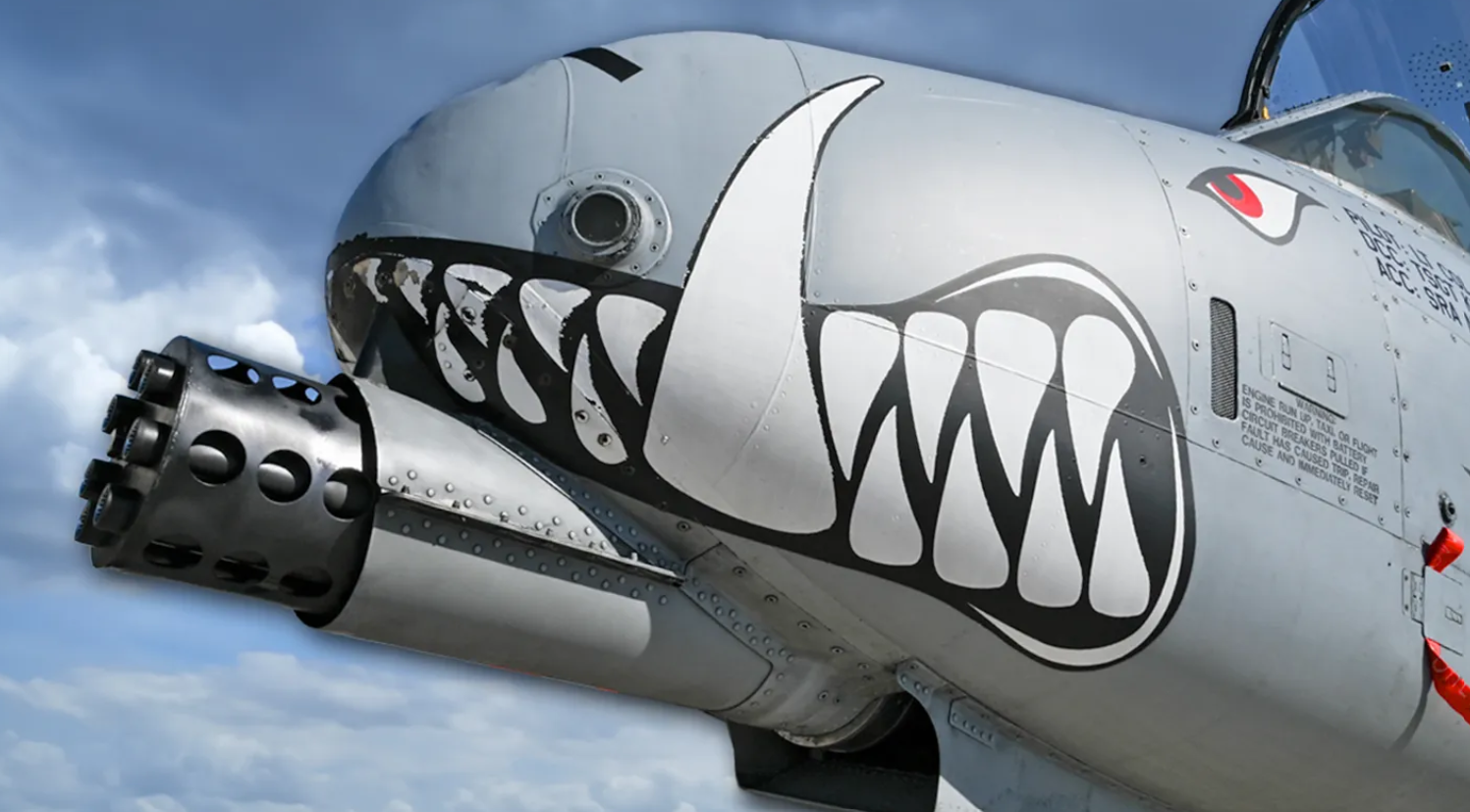

Sideways recoil is only part of the puzzle. The gun is mounted below the aircraft's center of gravity, so firing it also tends to push the nose downward. The cannon is therefore canted down by 2 degrees from the axis of level flight, and that angle is built directly into the targeting computer's calculations. The pilot never has to think about it. The aircraft is, in effect, pre-corrected for its own gun.

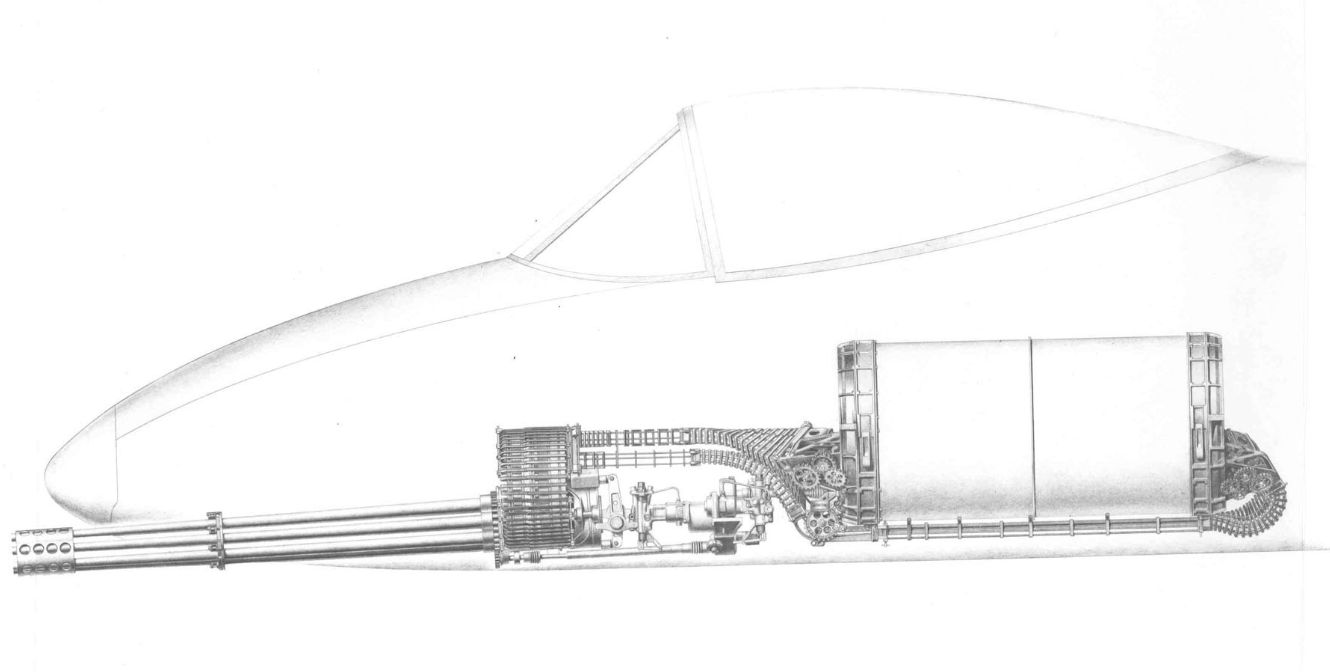

Taken together, the Avenger is offset to one side, angled slightly downward, and balanced against the weight of the aircraft around it. The nose wheel is simply the most visible sign of all that work.

Design Follows the Mission

All of this effort exists to make one thing dependable: a gun that can be aimed like a point-and-shoot weapon at close range. The cannon is credited with roughly 80% accuracy at around 4,000 feet, which is exactly the kind of performance the A-10 was created to deliver in close air support.

That is the quiet lesson of the offset nose wheel. On the Warthog, almost nothing is arranged for the sake of symmetry. The airframe, the balance, the landing gear and even the pilot's targeting computer all adjust themselves around the gun, and a wheel sitting slightly off center is how that decision shows up on the ramp.
